P SERIES

AUTOMATIC RETRACTABLE BOLLARDS WITH BUILT-IN HYDRAULIC PUMP

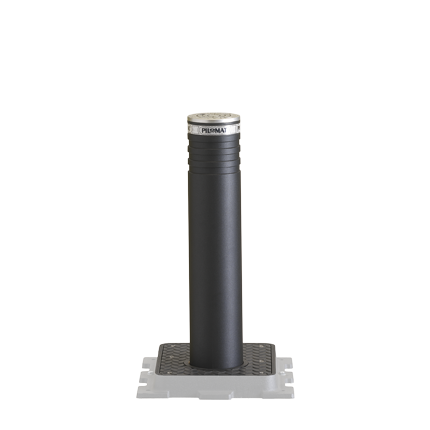

127P_600A
127/P 600A
datasheet
127P_800A
127/P 800A
datasheet
220P_600A
220/P 600A
datasheet
275P_400A
275/P 400A
datasheet
275P_500A
275/P 500A
datasheet

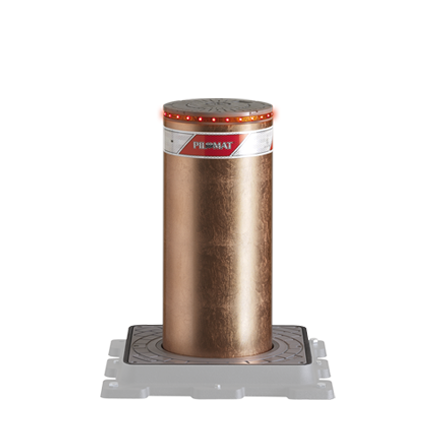

275P_600A
275/P 600A
datasheet
275P_800A
275/P 800A
datasheet
PARK_275P_500A
PARK 275/P 500A
datasheet
275P_600A
275/P10 600A
datasheet
275P10_800A
275/P 10 800A
datasheet

The P SERIES automatic bollards are the top line products of PILOMAT range. The current models are the result of the development of more than 20 years of experience.

General features

hydraulic movement: The most reliable technology for most intense use at all temperatures and weather conditions;
Built–in hydraulic pump in the bollard: This philosophy has many advantages, particularly in installations in locations with severe winter temperatures or when the installation requires a considerable distance (up to 80 metres) between the PILOMAT and the control unit;
Patented system for the protection of handling: to maximise the reliability of operations due to impact by vehicles on the cylinder that is put in motion;

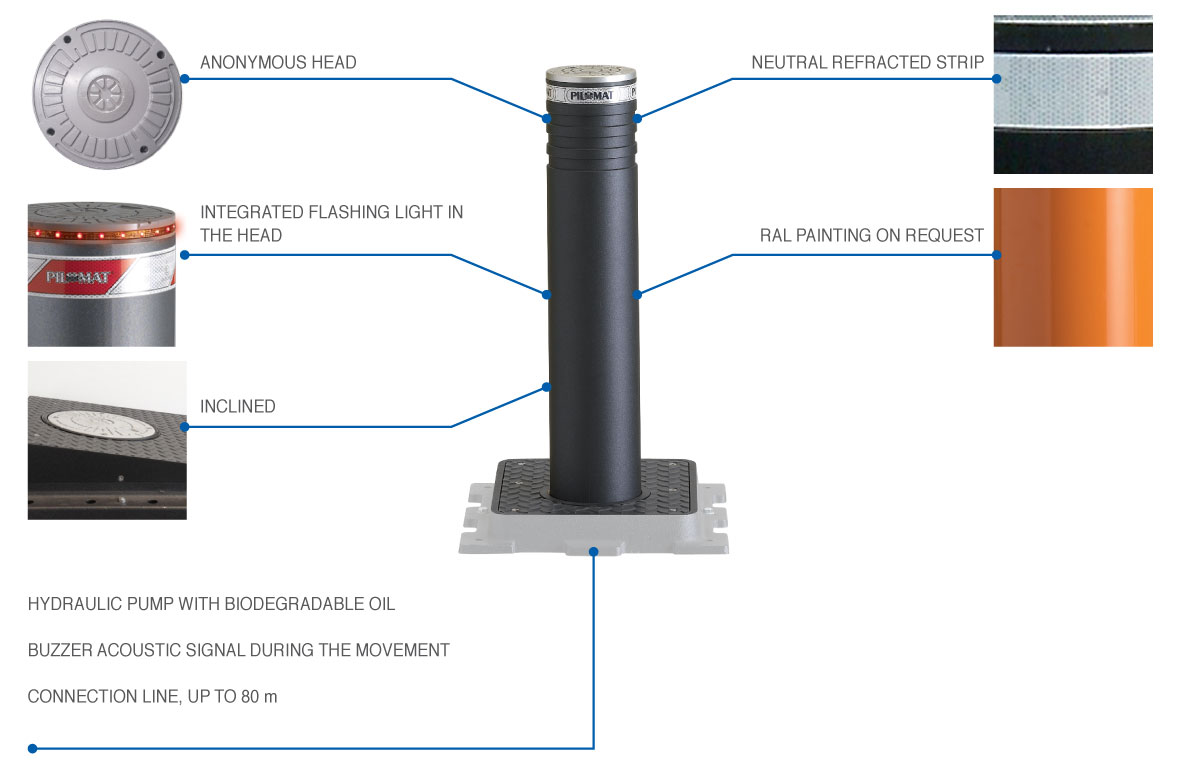

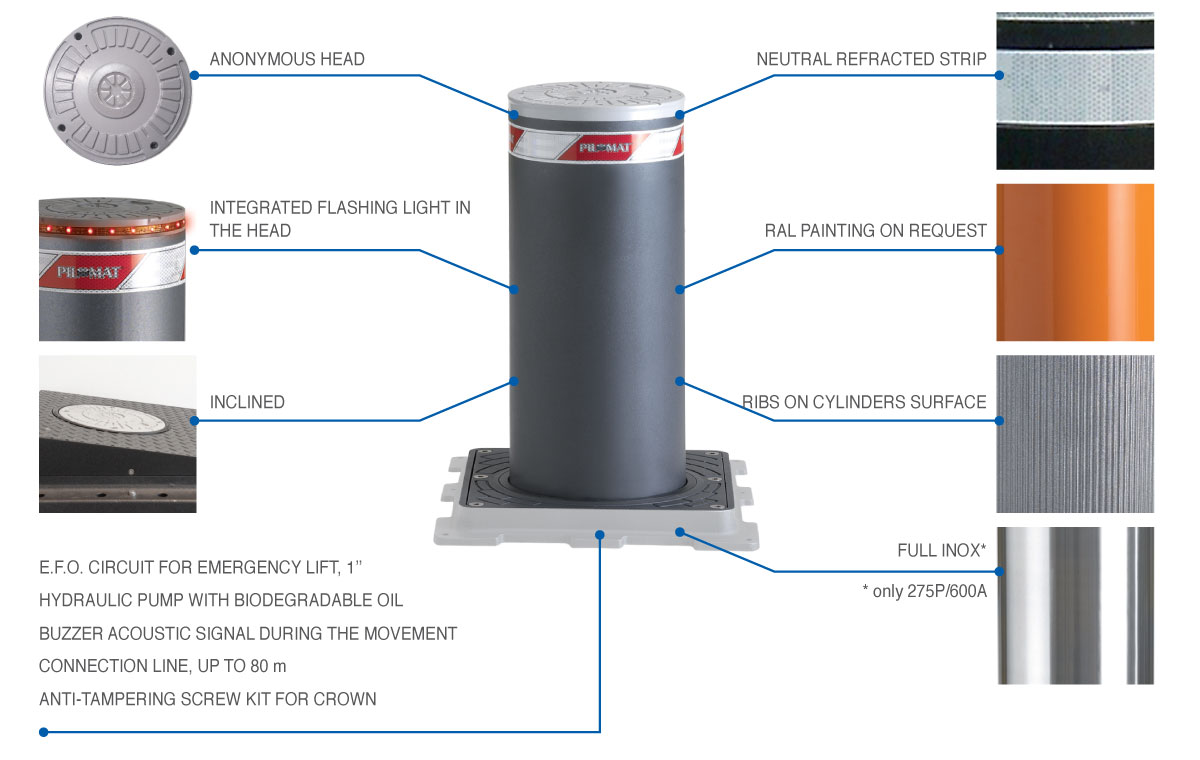

Wide range of optional configurations: custom colours, flashing lights integrated into the head, intermittent sound signal, 220V solenoid valve (in case of power failure, the PILOMAT is lowered,  releasing the gate), heat resistance installations in locations with harsh winter temperatures, UPS unit for operation in the temporary occurrence of power failure, equipment control, equipment accident prevention (see accessories and optional items).

Recommended uses

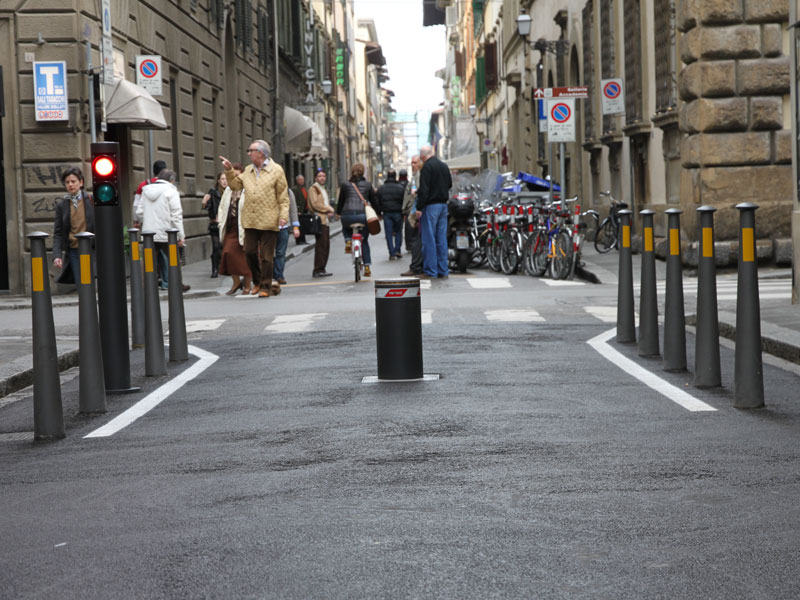

  • Pedestrian Areas
  • Private Car Parks
  • Parking Company

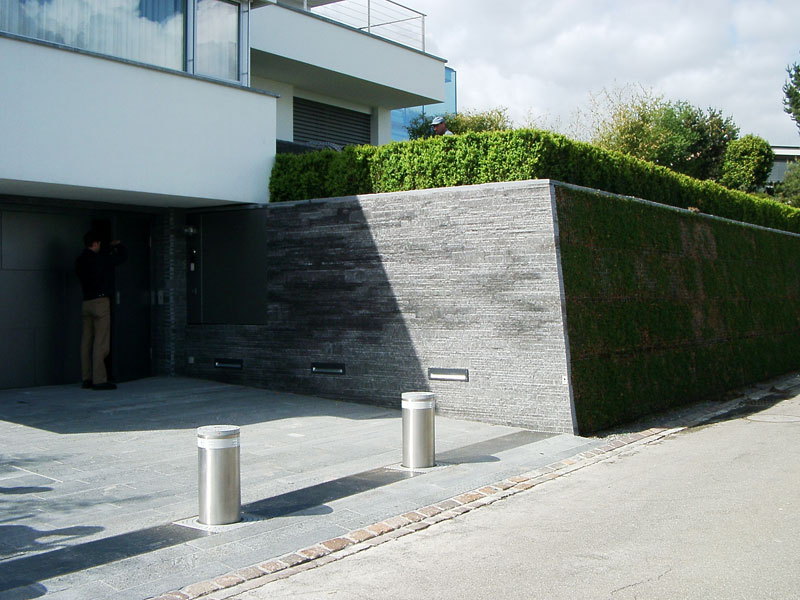

  • Private Driveways
  • Driveway Businesses
  • Commercial Driveways
Discover all the accessories
for these automatic bollards
P3
P1
PARK 275/P 500A

Breakout resistance: 250.000 J

PILOMAT PARK 275/P 500A is a variant of PILOMAT p series, which has the same general features (pag 24), but the hydraulic system allows faster handling time (lowering 1” – rising 3”), is typically used in public parking access or private, in combination with traditional barriers in order to improve the level of passive safety, preventing theft of vehicles that are parked but not limiting the timing of transit.

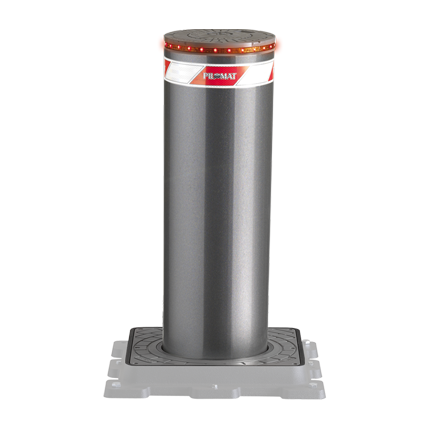

275/P10 800A

Breakout resistance: 400.000 J

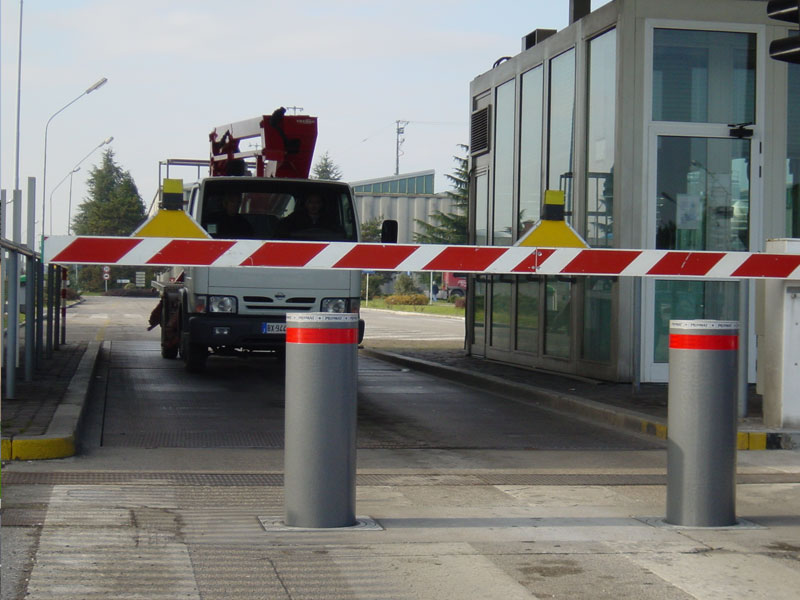

PILOMAT 275/P10 800A is a variant of  PILOMAT p series, which has the same general features (pag 24), but the cylinder is thicker in order to increase the resistance of breakage. It is typically used in business and industry, combined with the classical gates in order to improve the level of passive safety, preventing theft of vehicles and its cargo inside the area.

P2

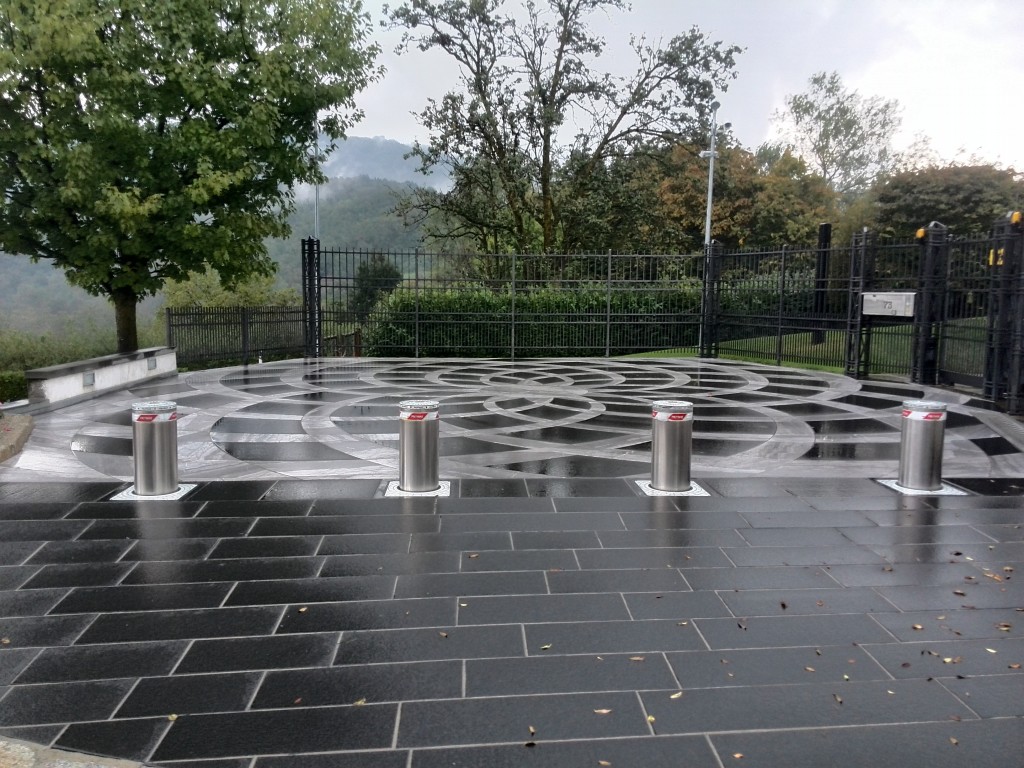

discover the examples of
installation dedicated to these automatic bollards.

Actual product may differ from image shown
