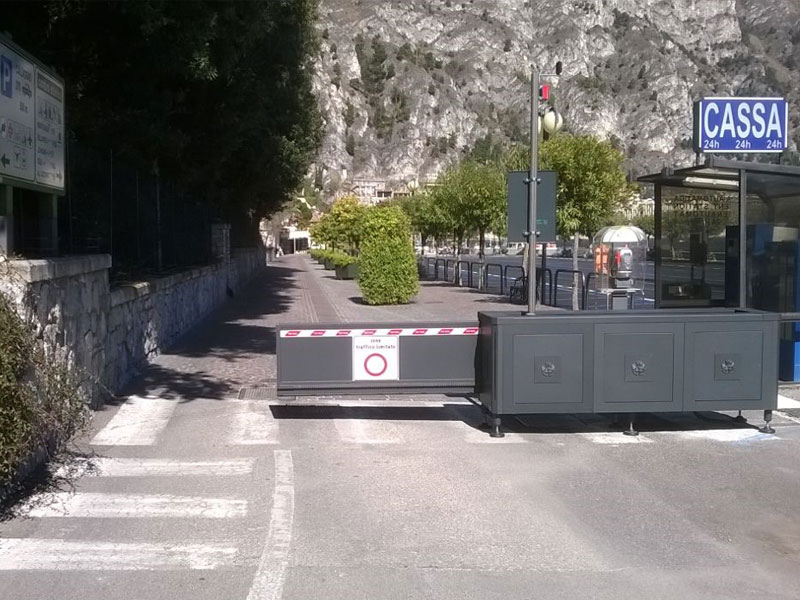

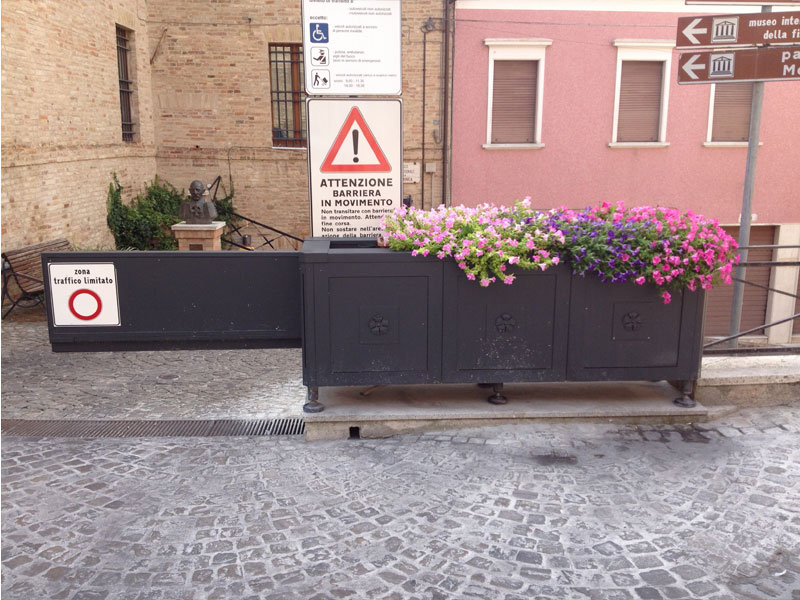

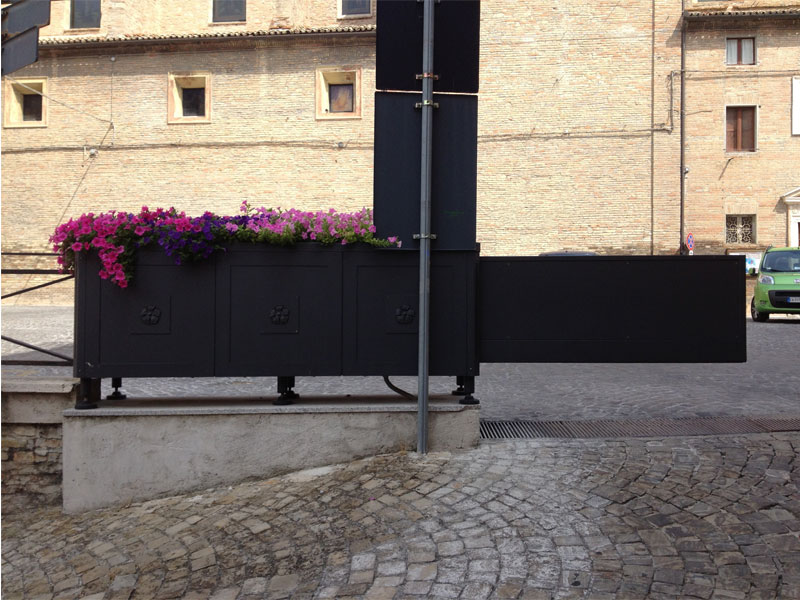

PILOMAT CITY GATE, the planter becomes a moving sliding barrier to control the traffic.

PILOMAT CITY GATE is a moving motorized barrier with unilateral or bilateral sliding; it consists of a metal planter with rectangular base and adjustable ground supports. Characterized by a large perimeter edge, with the function of delimiting the containment tank of the planter’s earth and to cover the sliding mechanism, it is equipped with a moving barrier to hurdle, housed internally between the tank and the external side of the planter. The barrier flowing parallel to the planter, comes out creating a extension of the planter itself, blocking the vehicular traffic. It is supplied completely wired, assembled and tested, it is equipped with safety laser photocell, limiting mechanism of the forces, integrated sound and intermittent light signal, manual unblocking and automatic opening in the case of a power failure. There are many optional items to configure each system.

General features

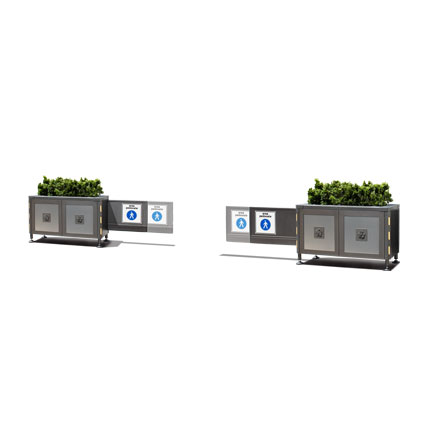

ONE  SLIDE

  • SMALL SX version, 2 modules (cm 160x67x90h), sliding barrier from 120 cm.
  • SMALL DX version, 2 modules (cm 160x67x90h), sliding barrier from 120 cm.
  • BIG SX version, 3 modules (cm 235x67x90h), sliding barrier from 170 cm.
  • BIG DX version, 3 modules (cm 235x67x90h), sliding barrier from 170 cm.

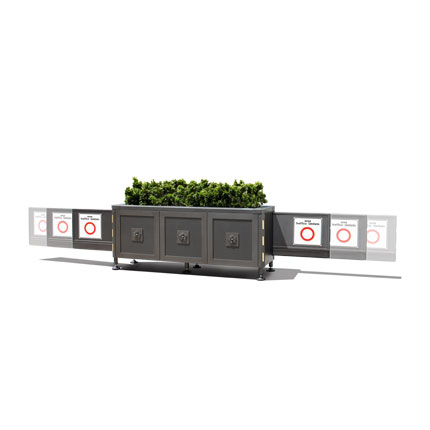

TWO SLIDE

  • BIG version, 3 modules  (cm 235x67x90h)
  • 2 sliding barriers from 170 cm.

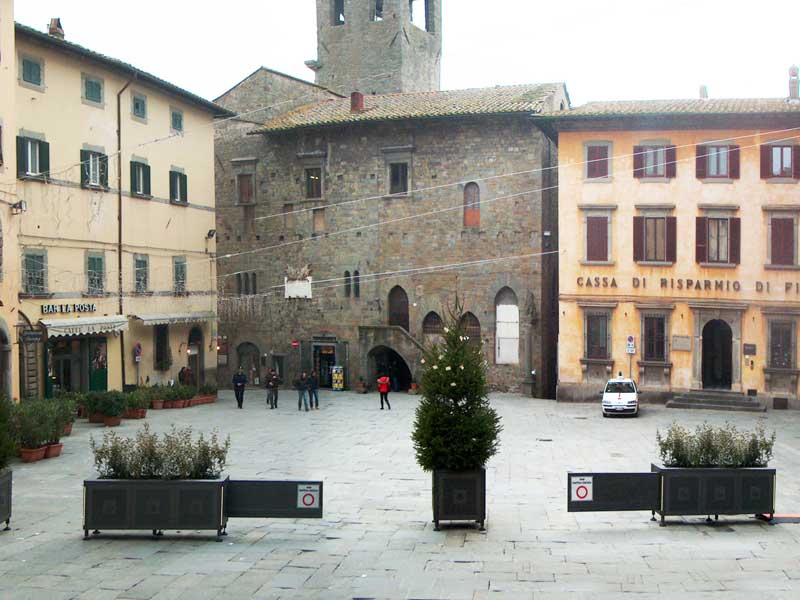

FIXED

Fixed planters to match with moving barriers for delimitation of transit areas.

  • SMALL FIX version, 1 module (cm 67x67x90 h).
  • BIG FIX version, 1 module (cm 89x89x90 h).

Actual product may differ from image shown
