The semiautomatic PILOMAT ENERGY towers series are designed to provide complementary services such as electricity and telephone communications, compressed air and water. They are used in those places typically used for parking or pedestrian areas, and sometimes used as market areas and places for events, concerts and similar. The use of PILOMAT ENERGY prevents the laying of cables and tubes, guaranteeing greater security for its users. The current models are the result of the development of more than 20 years of experience.

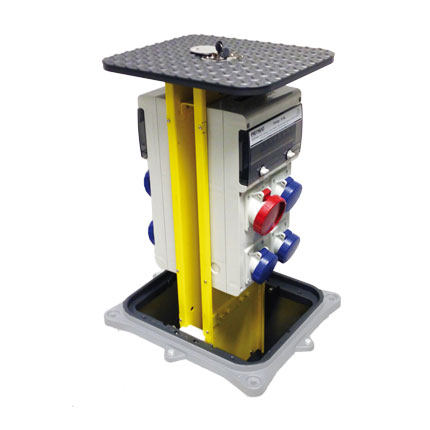

B3020 60 - B4030 60

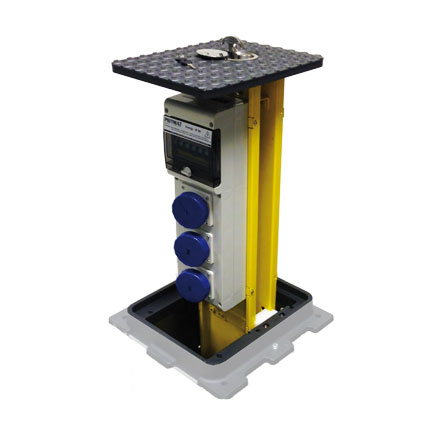

The PILOMAT ENERGY B3020 60 and B4030 60 towers with manual movement allow the installation of electrical sockets, single and/or three phase 16A, in compliance with regulations EN 60301-1 and EN 60301-2 and related circuit breakers. The cover plate placed at the top of the tower is in compliance with regulation UNI EN 124 with load class C250.

B4040 55

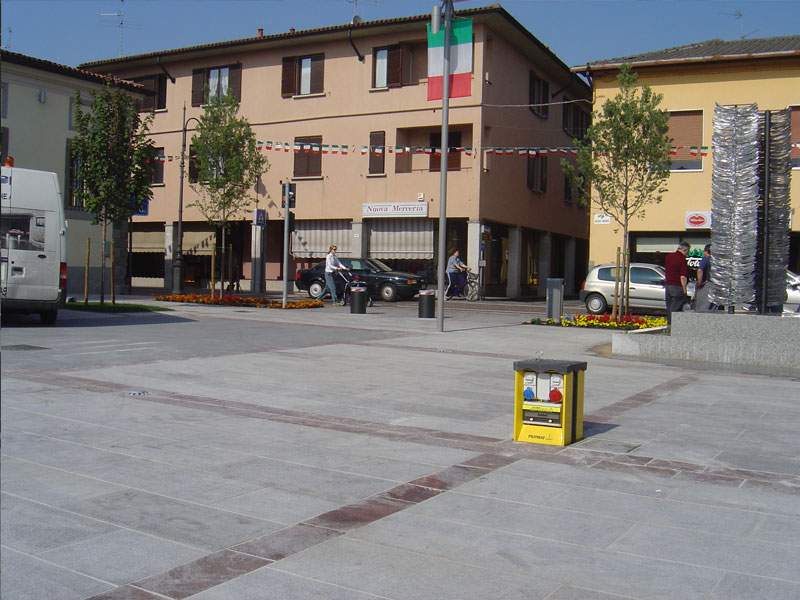

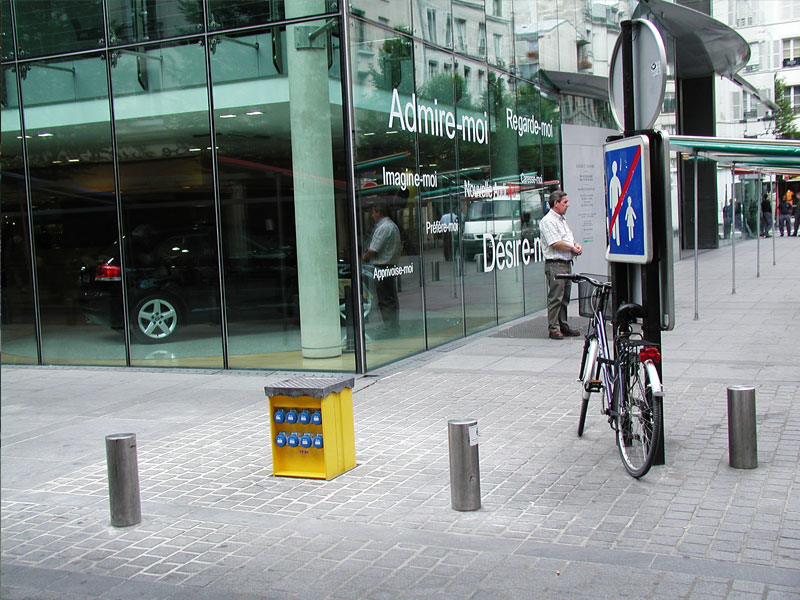

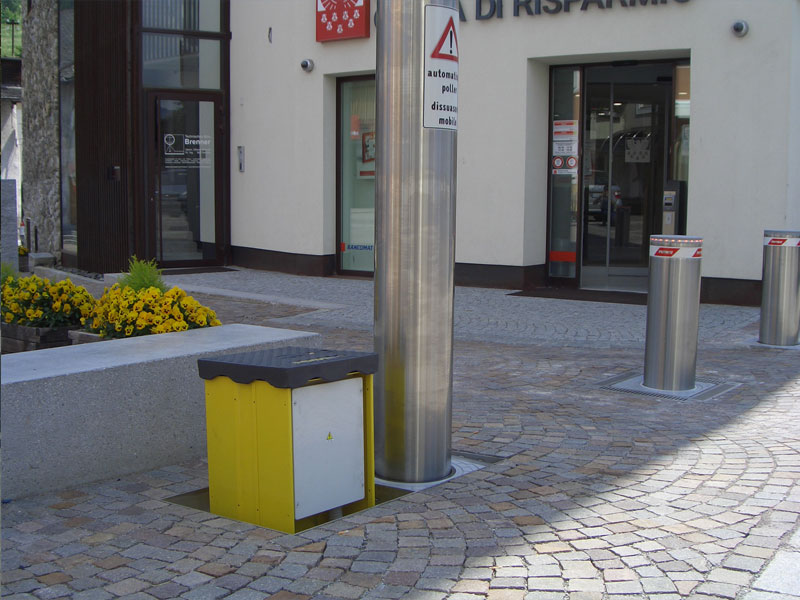

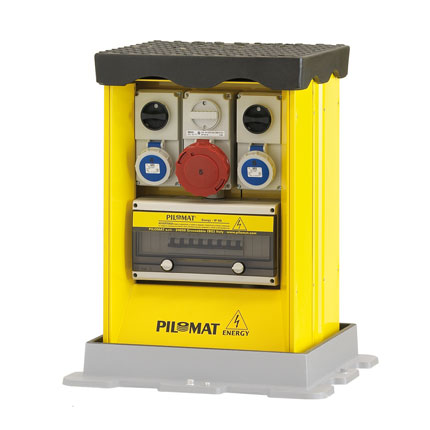

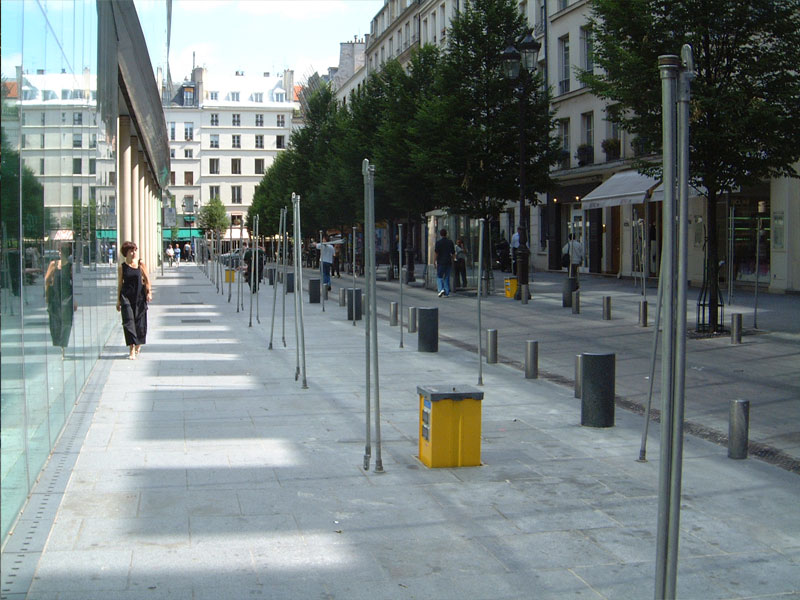

The PILOMAT ENERGY B4040 55 towers, at semiautomatic movement, allow for multiple installations of single–phase and/or three–phase 16A, 32A, and 63A, in accordance with EN 60301–1 EN 60301–2 regulations and related protective circuit breakers. The coverplate at the top of the movement tower is in compliance with UNI EN 124 regulations with load class C250 or D400.

General features: B4040 55 PILOMAT ENERGY towers are semiautomatic with incorporated gas actuators; the procedure is similar to semi–automatic PILOMAT bollards (p. 60).

Choice of optional configurations: mobile FE370 towers, steel or stainless steel, AISI 304 – FE 370 pits with anti–corrosion steel or stainless steel, AISI 304 – Standard coverplate, or filleable with C250 or D400 class load.

LONDON

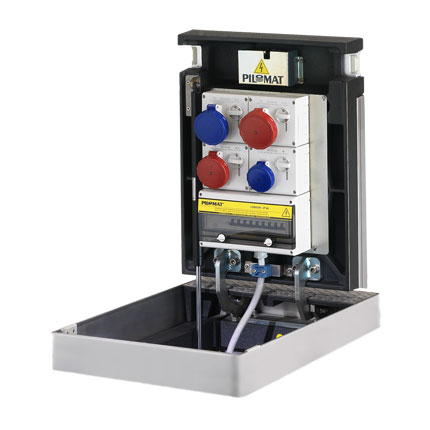

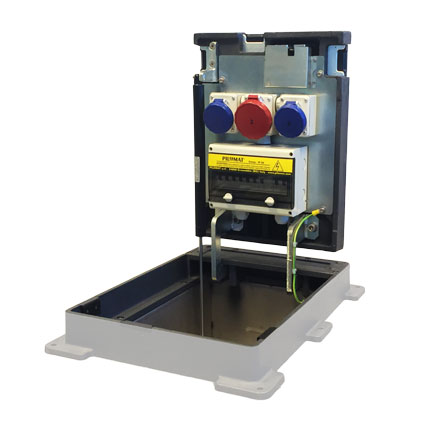

The pilomat energy LONDON towers, at semiautomatic movement, allow for multiple installations of single–phase and/or three–phase 16A and 32A in accordance with EN 60301–1 EN 60301–2 regulations and related protective circuit breakers. The driveway coverplate at the top of the moving tower is compliant with UNI EN 124 regulations with load class D400.

General features: the pilomat energy LONDON are semiautomatic, with incorporated gas actuator. The design of pilomat energy LONDON allows for the creation of structures that allow the connection of users and the subsequent closure of the upper structure, allowing for total drive ability in the area.

Action: the pilomat energy LONDON structures, semi–automatic movement, are operated using a mechanical key that unlocks the restraint, resulting in automatic 90º opening from the coverplate due to the incorporated gas actuator. The closure of the structure is carried out by pushing it toward the ground, acting with the foot on the coverplate with the 90º opening from the ground; a cover totally below the restraint system is automatically locked, preventing the possibility of lifting.
