Installation examples

The example of installation displayed is only one of the possible configurations. It is recommended that assessments be made regarding the full range of available options and accessories for the configuration of the system, as executed suggestions.

Running-one-way-street

Running one-way street

Configuration of the system displayed

  • no. 2 automatic PILOMAT with integrated flashing light and foundation pit
  • no. 1 metallic column on pavement for control unit, with radio receiver
  • no. 1 traffic light
  • no. 1 signpost (italian only)
  • no. 1 inductive detector for safety one-channel inductive loop
  • with inductive loop – dimension 9,60 m – connection line to control unit: 15 m
Running-two-way-street

Running two-way street

Configuration of the system displayed

  • no. 2 automatic PILOMAT with integrated flashing light and foundation pit
  • no. 1 stainless steel column on pavement for no. 2 control unit
  • no. 1 inductive card reader integrated in the front of the column
  • no. 2 traffic lights
  • no. 2 signposts (italian only)
  • no. 1 inductive detector for safety one-channel inductive loop with inductive loop –¬†dimension 9,60 m –¬†connection line to control unit: 15 m
  • no. 1 inductive detector for command one-channel inductive loop
Combined-system

Combined system

Configuration of the system displayed

  • no. 2 automatic PILOMAT with integrated flashing light and foundation pit
  • no. 1 metallic column for control unite, with radio receiver
  • no. 1 traffic light
  • no. 1 signpost (only italian)
  • no. 1 inductive detector for safety one-channel inductive loop with nductive loop – dimension 9,60 m – connection line to control unit: 15 m
  • no. 1 semi-automatic PILOMAT with foundation pit
  • no. 1 fixed PL series PILOMAT
Security-entrance-vehicular-zones

Security entrance vehicular zones

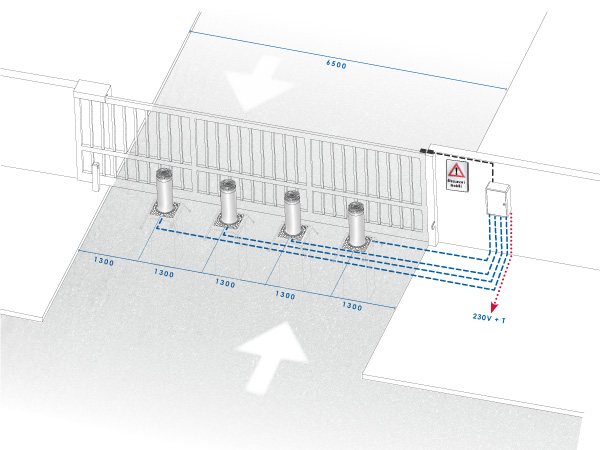

Configuration of the system displayed

  • no. 4 automatic PILOMAT with foundation pit
  • no. 1 control unit
  • no. 1 signpost (only italian)
  • no. 1 closed gate detection sensor
