275/K4FB 700F

Fixed bollards with reinforced basement

Model of the FB Series, consisting of high-security fixed bollards equipped with a reinforced foundation for protection against trucks up to 7,500 kg.

The fixed bollard 275/K4 700F is designed to provide a solid protection system while maintaining a reduced impact both in terms of installation and visual footprint. Thanks to its shallow foundation, it is less invasive and easier to install. It is not certified, but it is built in compliance with international standards to ensure a smart balance between reliability, strength, and investment.

Technical data
Dimensions

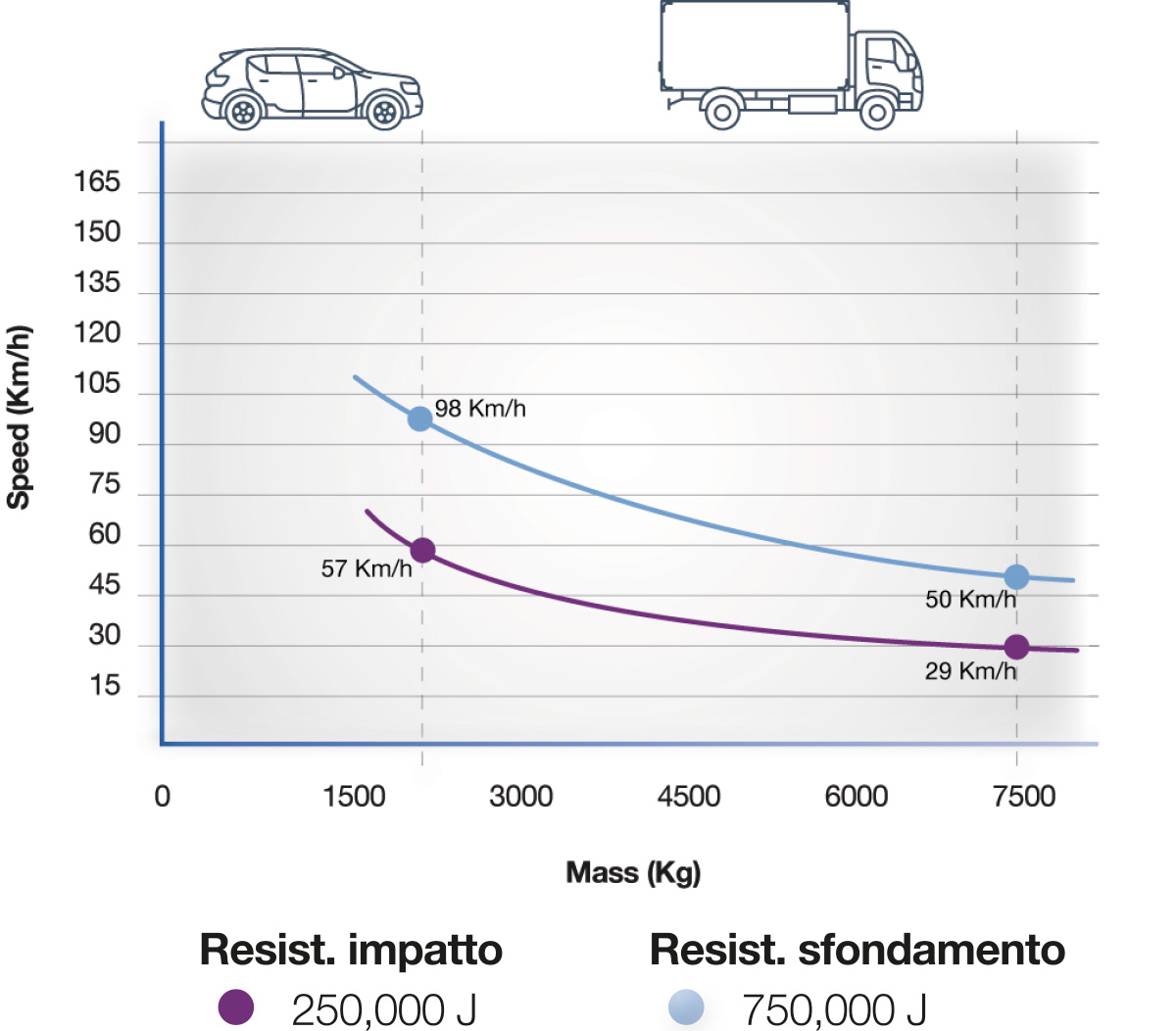

Crash test
Datasheet

Compliance

ASTM
IWA 14-1
PAS68

Application areas

Pedestrian area protection

Access control for residential and corporate driveways

Storefront protection

Protection of sensitive or high-security areas

Restricted-area boundary control

Theft protection

Standard configuration

Bollard
Anthracite grey painted steel device for controlling vehicle access with reinforced base.

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Finishes
Safety
Design

Technical data

Cylinder material	S355JR normal steel - X5CrNi 18-10 (AISI 304) - X5CrNiMo 17-12-2 (AISI 316) stainless steel
Cylinder diameter	273mm
Cylinder height	700mm
Cylinder thickness	10mm
Cylinder normal steel finish	Anti-corrosion treatment - grey anthracite standard painting
Cylinder stainless steel finish	Grey anthracite standard painting or brushing
Reflecting adhesive strip	Standard - height 55mm
Connection line for LED lighting strips	Standard 10m (max 80m)
Protection class	IP 67
Impact resistance	250.000 J
Breakout resistance	750.000 J
In compliance with	PAS68, IWA 14-1, ASTM M30 (K4)
