275/K4ST 700F

Fixed bollards with simple structure

Variant of the ST line, which includes fixed bollards with simple design and structure, offering security without compromising urban aesthetics.

The 275/K4ST 700 F model is the most accessible option in the ST line. Not certified, yet built in compliance with international standards, it offers an excellent balance between cost, strength, and minimal visual impact—providing effective protection while remaining less intrusive.

Technical data
Dimensions

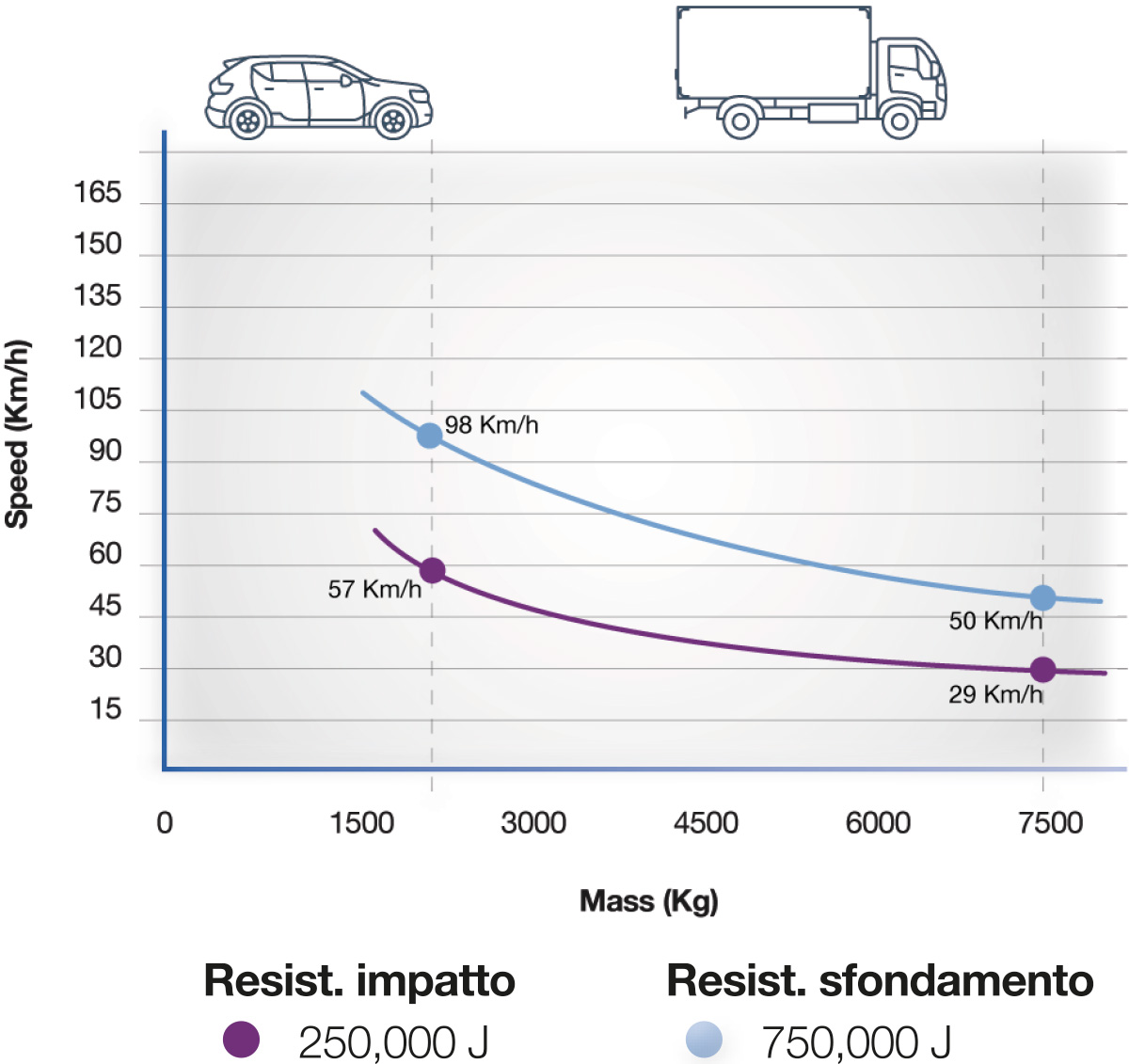

Crash test
Datasheet

Compliance

ASTM
IWA 14-1
PAS68

Application areas

Pedestrian area protection

Access control for residential and corporate driveways

Storefront protection

Protection of sensitive or high-security areas

Restricted-area boundary control

Theft protection

Standard configuration

Bollard
Vehicle access control device in anthracite grey painted steel.
WARNING: punching shear reinforcement not included in the supply.

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Finishes
Safety
Design

Technical data

Cylinder material	S355JR normal steel - X5CrNi 18-10 (AISI 304) - X5CrNiMo 17-12-2 (AISI 316) stainless steel
Cylinder diameter	273mm
Cylinder height	700mm
Cylinder thickness	10mm
Cylinder normal steel finish	Anti-corrosion treatment - grey anthracite standard painting
Cylinder stainless steel finish	Grey anthracite standard painting or brushing
Reflecting adhesive strip	Standard - height 55mm
Connection line for LED lighting strips	Standard 10m (max 80m)
Protection class	IP 67
Impact resistance	250.000 J
Breakout resistance	750.000 J
In compliance with	PAS68, IWA 14-1, ASTM M30 (K4)
Reinforcement kit for ST	Optional - Punching rebars
